New High-speed Plastic Biaxial Stretching Geogrid Production Line

Shandong Tongjia 2018 high-speed fully automatic plastic biaxial tension geogrid production line (model: TJ-TGGS4000) high-speed geogrid production line is a perfect combination of years of production essence of well-known geogrid enterprises and advanced patent technology of plastic extrusion lamination. It has been carefully optimized and optimized by well-known extruder experts for many years. Experience accumulated in producing plastic mesh equipment, R&D and manufacture of high-speed automatic geogrid production line! The linear speed of production products reaches 16 meters per minute, which is more than twice as fast as that of traditional models. It is faster than the current geogrid production speed in the market. It has subverted the traditional concept of the grille production speed in the industry once again! It opens up a new situation for Chinese quality, Chinese speed and the transformation of new and old kinetic energy of Chinese geogrid enterprises, and composes a new chapter in the new era.

CONTACT US
  • Product Description
  • 详细参数
  • 产品说明
  • 产品应用
    • 商品名称: New High-speed Plastic Biaxial Stretching Geogrid Production Line

    Shandong Tongjia 2018 high-speed fully automatic plastic biaxial tension geogrid production line (model: TJ-TGGS4000) high-speed geogrid production line is a perfect combination of years of production essence of well-known geogrid enterprises and advanced patent technology of plastic extrusion lamination. It has been carefully optimized and optimized by well-known extruder experts for many years. Experience accumulated in producing plastic mesh equipment, R&D and manufacture of high-speed automatic geogrid production line! The linear speed of production products reaches 16 meters per minute, which is more than twice as fast as that of traditional models. It is faster than the current geogrid production speed in the market. It has subverted the traditional concept of the grille production speed in the industry once again! It opens up a new situation for Chinese quality, Chinese speed and the transformation of new and old kinetic energy of Chinese geogrid enterprises, and composes a new chapter in the new era.

    Main Technical Specification
    Model   JG-TGGS4000G TJ-TGGS6000G
    Extruder   Φ160/33x2 Φ180/33x2
    Screw dia. mm Ø160 Ø180
    Width of die head mm 1450 2000
    Punching pressure KN 2500 3150
    Width of single-direction product mm 1200 2000
    Width of double-direction product mm 4000 6000
    Spec. of double-direction product KN/m 15-15,20-20,30-30,40-40,45-45,50-50
    Dimensions(L*W*H) (approx) m 106x12x4.8 110x15x5.2

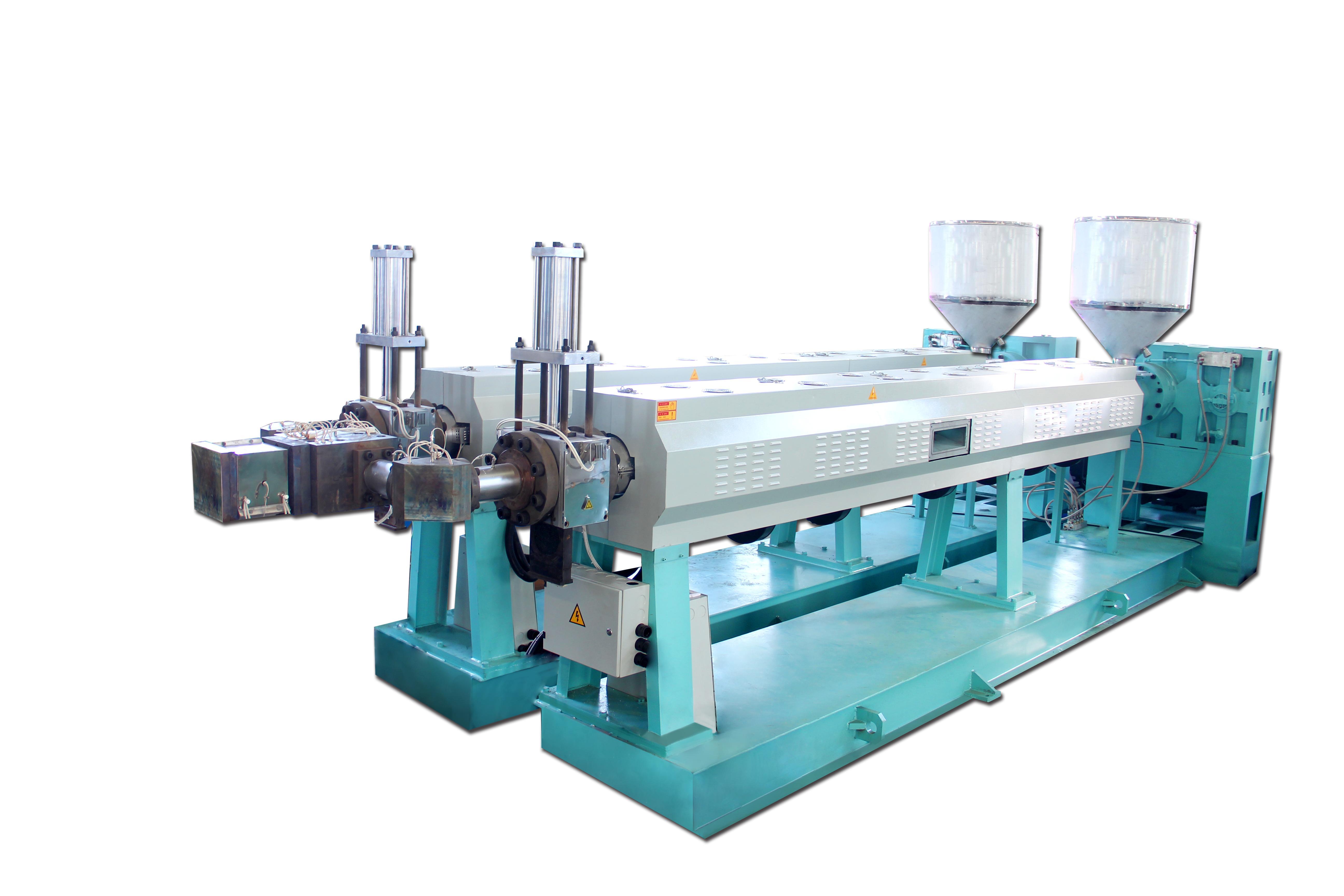

    High Efficiency Single Screw Extruder

    The extruder can continuously produce PP/PE thermoplastics. High output and low power consumption. The heating device has accurate temperature control and temperature protection function, which can disconnect the heating element when the temperature detection device fails, and the extrusion performance is stable and without fluctuation.

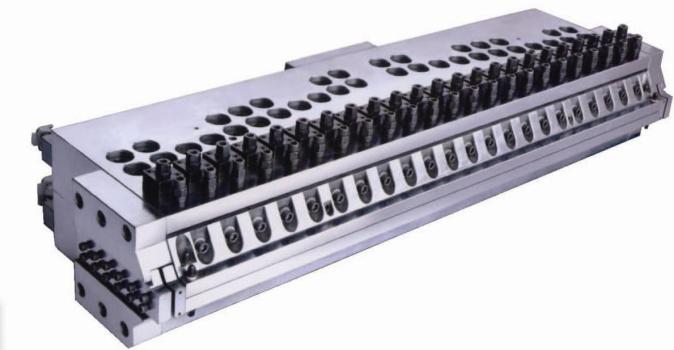

    Hanger Flat Extrusion Template

    The stainless steel heating rod is used for zonal heating, so that the material is extruded smoothly and evenly. The die lip adopts adjustable grinding bars to meet the production of sheets of different widths



    Large diameter three-roll calender

    Adopt independent motor frequency conversion speed regulation and reducer drive, digital dial indicator. Three groups of independent closed circulating water cooling devices, three-roll gap adjustment adopts electric adjustment, mechanical locking and protection

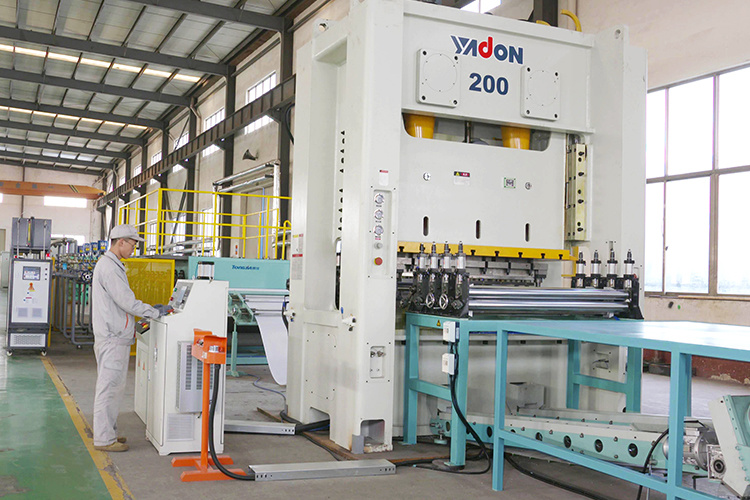

    High-precision punching device

    Gantry type closed double-point high-performance press, closed integral welded body, eliminates the angular deformation of the open press, and improves the machining precision of stamping parts and the life of the mold



    Oil constant temperature multi-roll longitudinal stretching system

    Tongjia's independent patented technology adopts step-by-step precise stretching, high control precision, and uniform stretching, which can meet the uniaxial orientation processing of high-strength products. Ensure small axial temperature difference, high temperature control accuracy, energy saving and environmental protection

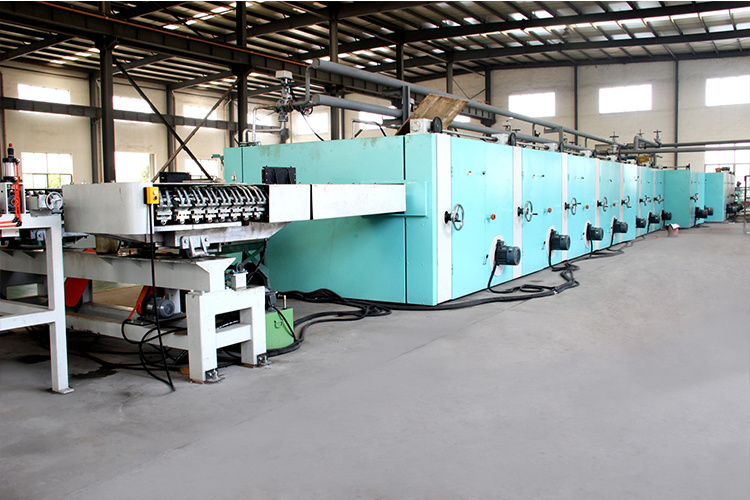

    Lengthening and adjustable width transverse stretching system

    The whole system adopts a 12-section lengthened oven, optimized design of aerodynamic fluid software, symmetrical multiple sets of heat exchange fans for heating, uniform air volume and temperature, and precise temperature control of the system to ensure uniform heating temperature of the product. Fast heating and low energy consumption

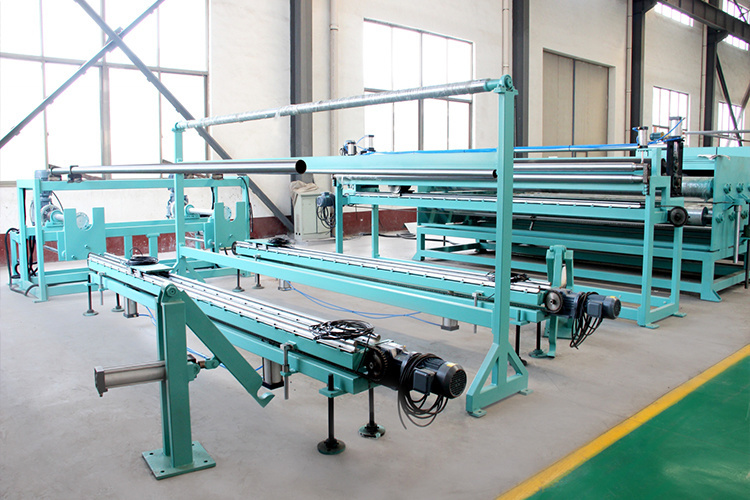

    Automatic winding and cutting system

    It adopts double-station air-expanding shaft winding, and adopts fixed-length automatic cutting according to customer requirements





    TONGJIA

    TONGJIA



    Application



    • geonet machine
    • geogrid machine
  • 型号

    JG-TGGS6000

    挤出机

    Φ180/33

    螺杆直径

    mm

    Φ180

    模头宽度

    mm

    2000

    冲孔压力

    KN

    3150

    单向制品幅宽

    mm

    2000

    双向制品幅宽

    mm

    6000

    双向制品规格

    KN/m

    15-15,20-20,30-30,40-40,50-50

    外形尺寸(约)

    m

    110×15×5.2
