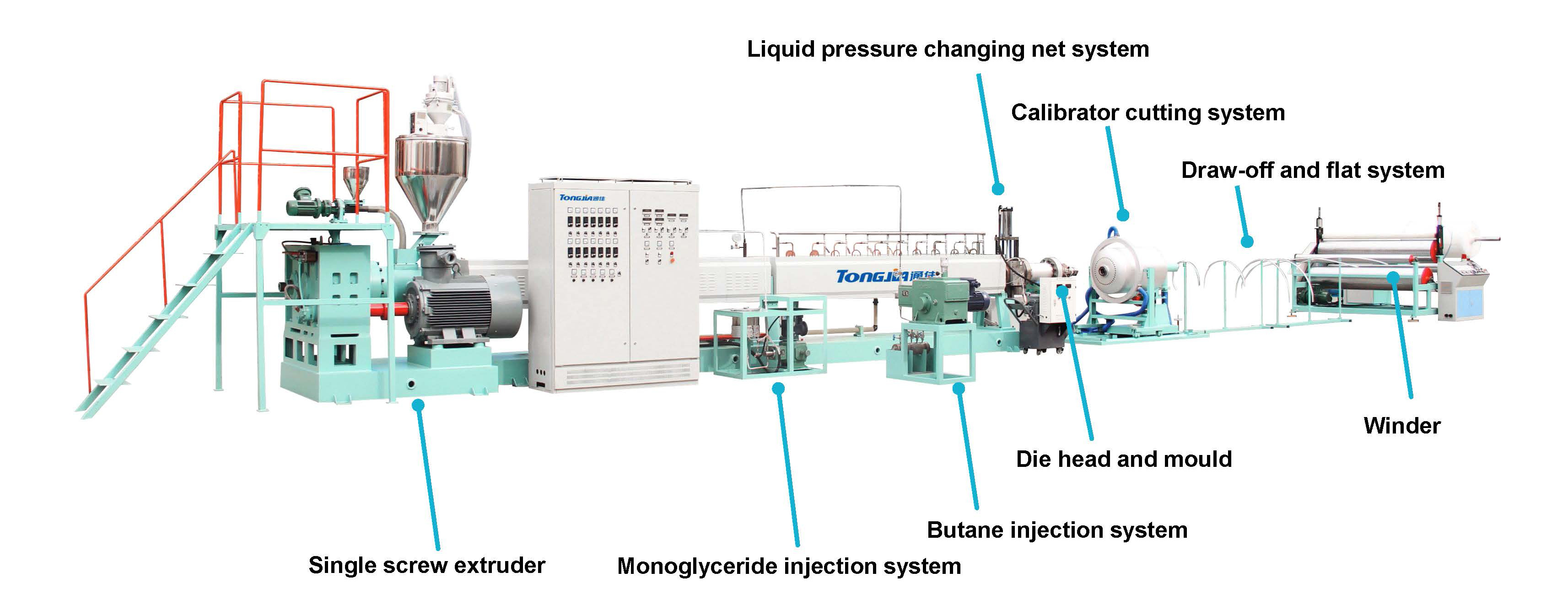

EPE Foamed Sheet/Film Production Line
Polyethylene foamed sheet/film, also named as pearl cotton, is a kind of new-type packing material with the features of dampproof, shockproofing, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, daily necessities, glass, pottery, electrical household appliances, spraying, furniture, hardware product, toy, etc.
CONTACT US- Product Description
- 详细参数
- 产品说明
- 产品应用
-
- 商品名称: EPE Foamed Sheet/Film Production Line
Polyethylene foamed sheet/film, also named as pearl cotton, is a kind of new-type packing material with the features of dampproof, shockproofing, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, daily necessities, glass, pottery, electrical household appliances, spraying, furniture, hardware product, toy, etc.
Polyethylene foamed sheet/film, also named as pearl cotton, is a kind of new-type packing material with the features of dampproof, shockproofing, sound insulation, heat preservation and good plasticity. It is an ideal substitute of traditional packing materials and used widely in the packing of electronic product, daily necessities, glass, pottery, electrical household appliances, spraying, furniture, hardware product, toy, etc.
Main Technical Specification Model JG-FPM90 JG-FPM105 JG-FPM120 JG-FPM135 Extruder Φ90/55 Φ105/55 Φ120/55 Φ135/55 Output (approx) kg/h 70-90 100-130 140-170 200-220 Foam rate times 30-60 30-60 30-60 30-60 Width of product mm 1000-1400 1000-1600 1000-1600 1000-1800 Thickness of product mm 0.5-4.0 0.5-5.5 0.8-6.5 1.0-8.0 Cooling method Cooled by wind and water Installed capacity (approx) KW 85 90 115 155 Dimensions (L×W×H)(approx) m 22x2.3x2.2 23x2.3x2.2 25x2.3x2.2 26x2.5x2.4 Total weigh(approx) T 8.5 9 10 12 Model JG-FPM150 JG-FPM180 JG-FPM200 JG-FPM250 Extruder Φ150/55 Φ180/55 Φ200/55 Φ250 Output (approx) kg/h 320-360 450-520 550-650 600-850 Foam rate times 30-60 30-60 30-60 30-60 Width of product mm 1000-2000 1000-3000 1000-3000 1000-3000 Thickness of product mm 2.0-12.0 3.0-16.0 3.0-25.0 5.0-30.0 Cooling method Cooled by wind and water Installed capacity (approx) KW 180 260 340 385 Dimensions (L×W×H)(approx) m 28x2.6x2.4 32x2.8x2.6 36x3.0x2.8 42x3.5x3.0 Total weigh(approx) T 15 17 20 26
- epe foam sheet machine
- epe foam machine
- epe sheet machine
- epe machine
- pe foam machine
-
型号
JG-FPM90
JG-FPM105
JG-FPM120
JG-FPM135
JG-FPM150
JG-FPM180
JG-FPM200
挤出机
Φ90/55
Φ105/55
Φ120/50
Φ135/50
Φ150/50
Φ180/55
Φ200/55
螺杆转速
r/min
5-75
5-75
5-75
5-60
5-60
5-50
5-50
发泡倍率
times
20-45
20-45
20-45
20-45
20-45
20-45
20-45
制品幅宽
mm
1000-1400
1000-1600
1000-1600
1000-1600
1000-2000
1000-2000
1000-2000
制品厚度
mm
0.5-3.0
0.5-5.0
0.8-6.0
2.0-8.0
2.0-12.0
3.0-16.0
3.0-25.0
冷却方式
风冷、水冷
装机容量(约)
KW
90
100
120
140
150
180
280
外型尺寸(约)
m
22×2.3×2.2
23×2.3×2.2
25×2.3×2.2
27×2.5×2.3
30×2.5×2.3
32×2.5×2.3
36×2.8×2.5
机器重量(约)
T
8.5
9
10
12
15
17
20
-
聚乙烯发泡片(膜)，又称珍珠棉，是一种新型的包装材料，具有防潮、防震、隔音、保温、可塑性能佳等诸多优点,是传统包装材料的理想替代品。
-
