Full Automatic CO2 XPS Physical Foamed Board Production Line
XPS extruded polystyrene foam sheet production line is a kind of heat insulation board which is made by using polystyrene and foaming agent as raw materials and extruded at high temperature. At present, fluorine-hydrogen chloride (HCFC) is used as a foaming agent in the industry. Fluorine-hydrogen-based blowing agents have a relatively large potential for destroying the ozone layer. According to the Montreal Treaty, China has gradually restricted the use of HCFCs.
CONTACT US- Product Description
- 详细参数
- 产品说明
- 产品应用
-
- 商品名称: Full Automatic CO2 XPS Physical Foamed Board Production Line
XPS extruded polystyrene foam sheet production line is a kind of heat insulation board which is made by using polystyrene and foaming agent as raw materials and extruded at high temperature. At present, fluorine-hydrogen chloride (HCFC) is used as a foaming agent in the industry. Fluorine-hydrogen-based blowing agents have a relatively large potential for destroying the ozone layer. According to the Montreal Treaty, China has gradually restricted the use of HCFCs.
Main Technical Specification Model TJ-XPS85P/250 TJ-XPS95P/250 TJ-XPS95P/300 TJ-XPS110P/300 Extruder Ø85Double Ø250 Ø95Double Ø250 Ø95Double Ø300 Ø110Double Thickness of board mm 20-150 30-150 30-150 30-150 Width of board mm 600/900/1220 600/900/1220 Output (approx) KG/h 600-800 700-900 800-1000 1000-1300 Installed capacity (approx) KW 550 650 700 750 Dimensions (L×W×H)(approx) m 80 × 15 × 5 90 × 15 × 5 90 × 15 × 5 100 × 16 × 6 Total weight (approx) T 55 60 70 75

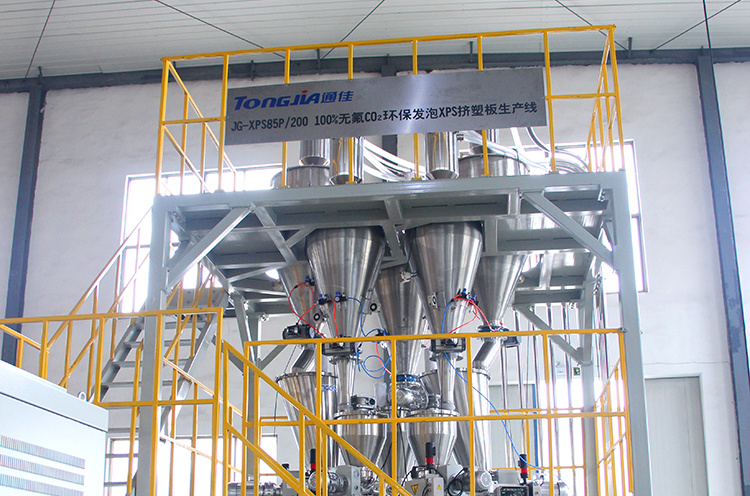

Multi-component loss-in-weight compounding system
Fully automatic computer control of various raw material ratios The feeding system adopts vacuum feeding to ensure the stable transportation of raw materials

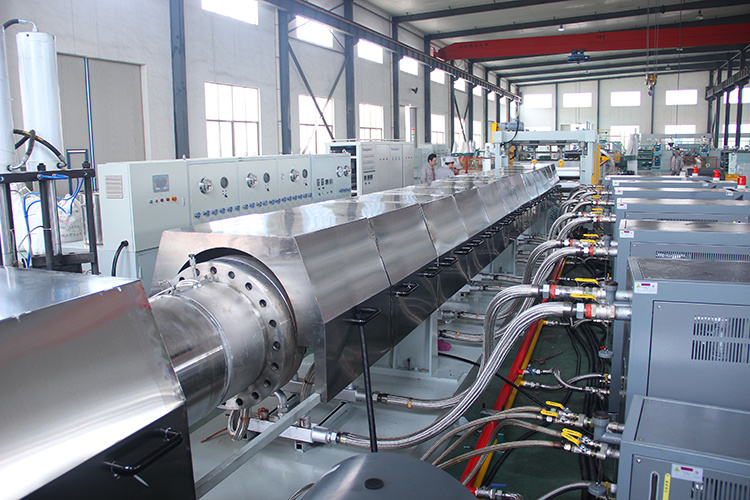

Energy-saving servo extrusion system
Using permanent magnet synchronous servo drive motor, screw building block structure, combined use according to the processing technology of materials

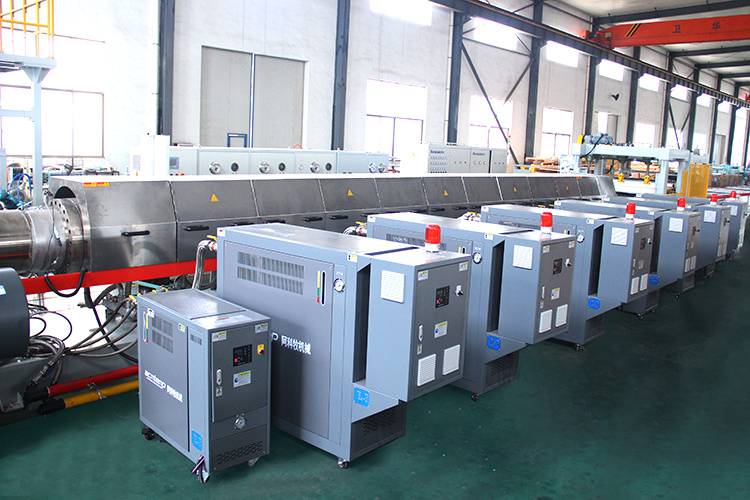

Cooling and constant temperature system
Precise proportional control of the cooling system to ensure good cooling
Supercritical CO2 blowing agent injection system
Adopting a fully imported flow control system and a unique three-stage booster injection system to maintain the stability of the foaming agent flow

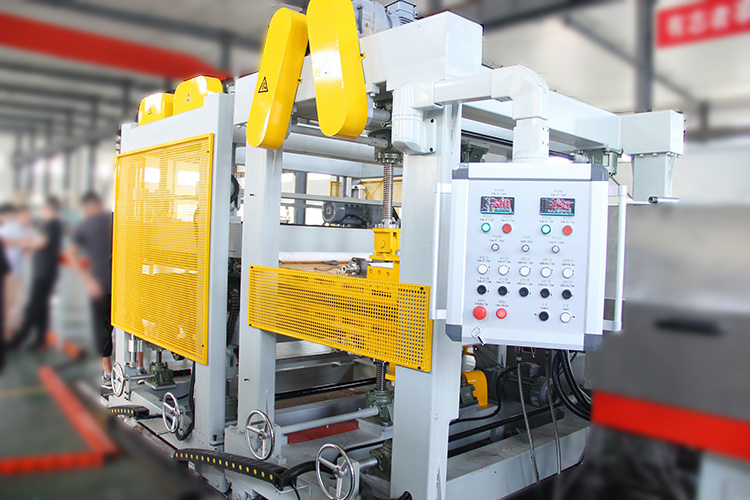

Extrusion die, sizing system
Adopt T-shaped large manifold, long fan-shaped area head to build pressure and extrusion, two-way electric adjustable device of molding system,proportional control of low-resistance system materials, double-sided shaping

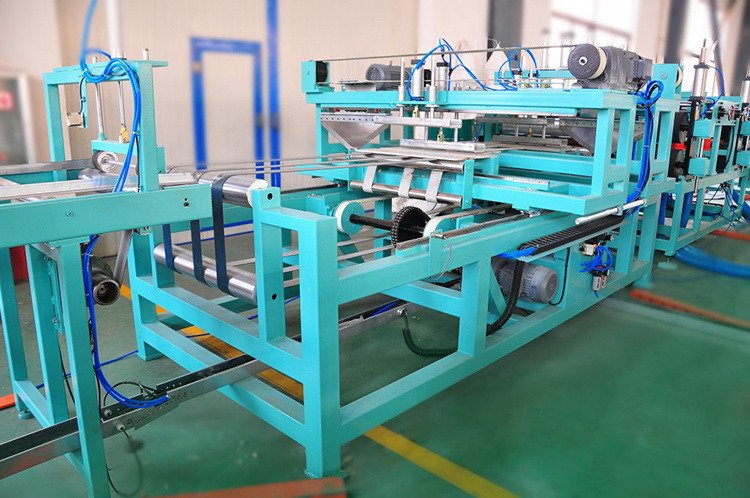

Conveying and cutting system
Automatic fixed-length cutting, trimming, vertical and horizontal edge forming, automatic stacking, multi-point monitoring, automatic alarm, automatic packaging system, no dustApplications

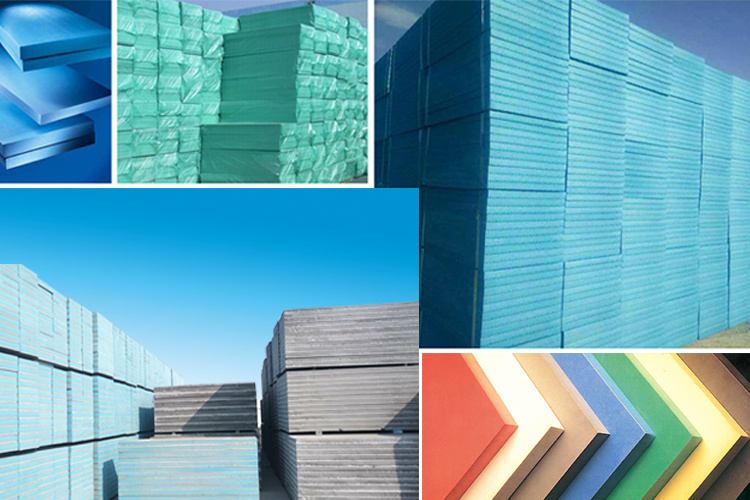

◆ For residential buildings, office buildings, industrial plants and other building walls and roof waterproofing, thermal insulation, thermal insulation
◆ Insulation board for cold storage, cold and waterproof
◆ For central air-conditioning ventilation pipes, heat insulation and heat preservation
◆ Anti-frost heave material for concrete water conveyance channels in water conservancy projects (such as South-to-North Water Diversion Project)
◆ Antifreeze and heat preservation for road, railway, airport, square and other roadbed projects- XPS extruded polystyrene foam sh
- XPS foam sheet machine
- xps extruder machine
- xps foam machine
- CO2 Foam xps extrusion line
- polystyrene insulation productio
-
型号
JG-XPS139/170
JG-XPS75P/200
JG-XPS85P/250
JG-XPS95P/300
挤出机
Ø139
Ø170
Ø75
Ø200
Ø85
Ø250
Ø95P
Ø300
加热功率(约)
KW
70
96
75
100
75
100
110
150
驱动功率
KW
90
90
110
110
160
160
220
200
制品厚度
mm
20-100
20-120
20-100
20-150
制品宽度
mm
600, 900, 1220
600, 900, 1220
600, 900, 1220
600,900,1220
生产能力(约)
kg/h
350-500
500-700
500-700
800-1000
装机容量(约)
KW
360
470
570
750
外形尺寸(约)
m
45 × 10 × 4
65 × 12 × 4
75 × 13 × 4
80 × 15 × 5
机器重量(约)
T
30
40
50
55
-
XPS CO2发泡板性能
◆ 表面平整均匀，完全闭孔式的内部蜂窝结构
◆ 保温、隔热（导热系数10℃：≤0.028w/Mk）、隔音、防潮性能优越
◆ 高抗压(压强：≥250kpa)、轻质(密度可达：28kg/M3)
◆ 不吸水(吸水：≤ 1.0%)、不透气、耐磨、不降解
-
CO2 XPS应用广泛，是目前市场公认的环保型绝热隔热保温材料
◆ 用于住宅楼，写字楼，工业厂房等建筑墙体及屋面防水、保温、隔热
◆ 用于冷库的隔热板，保冷、防水
◆ 用于中央空调通风管道，隔热、保温
◆ 用于水利工程中混凝土输水渠道的防冻胀材料（如南水北调工程）
◆ 用于公路、铁路、机场、广场等路基工程的防冻保温
