PP/PE Plastic Geogrid Production line

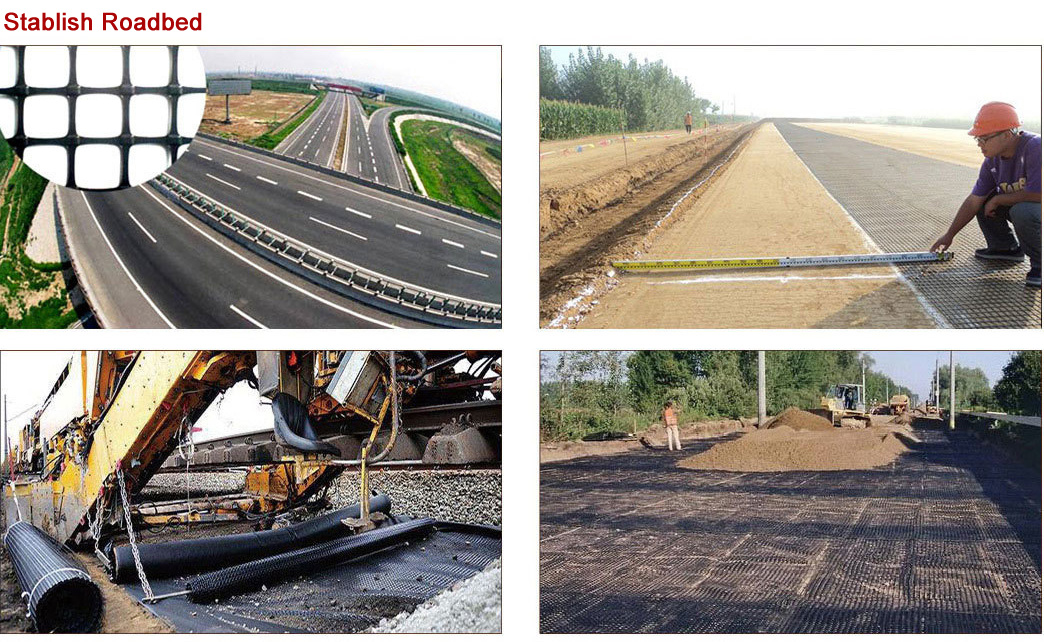

Plastic geogrid is made of high polymer materials, and shaped after extruding sheet, punching, single-direction and double-direction stretching. It has the following excellent advantages, like high strength, steady size, rot-resistance, and old-resistance. Because of its unique physical structure, it has great stretching strength in both vertical and horizontal directions, and has been widely used in the fields of roadbed enhancement and strengthening of highway, railway, runway, etc. and reinforced retaining wall project of highway, railway and the coast of sea and rivers.

CONTACT US
  • Product Description
  • 详细参数
  • 产品说明
  • 产品应用
    • 商品名称: PP/PE Plastic Geogrid Production line

    Plastic geogrid is made of high polymer materials, and shaped after extruding sheet, punching, single-direction and double-direction stretching. It has the following excellent advantages, like high strength, steady size, rot-resistance, and old-resistance. Because of its unique physical structure, it has great stretching strength in both vertical and horizontal directions, and has been widely used in the fields of roadbed enhancement and strengthening of highway, railway, runway, etc. and reinforced retaining wall project of highway, railway and the coast of sea and rivers.

    Plastic geogrid is made of high polymer materials, and shaped after extruding sheet, punching, single-direction and double-direction stretching. It has the following excellent advantages, like high strength, steady size, rot-resistance, and old-resistance. Because of its unique physical structure, it has great stretching strength in both vertical and horizontal directions, and has been widely used in the fields of roadbed enhancement and strengthening of highway, railway, runway, etc. and reinforced retaining wall project of highway, railway and the coast of sea and rivers.

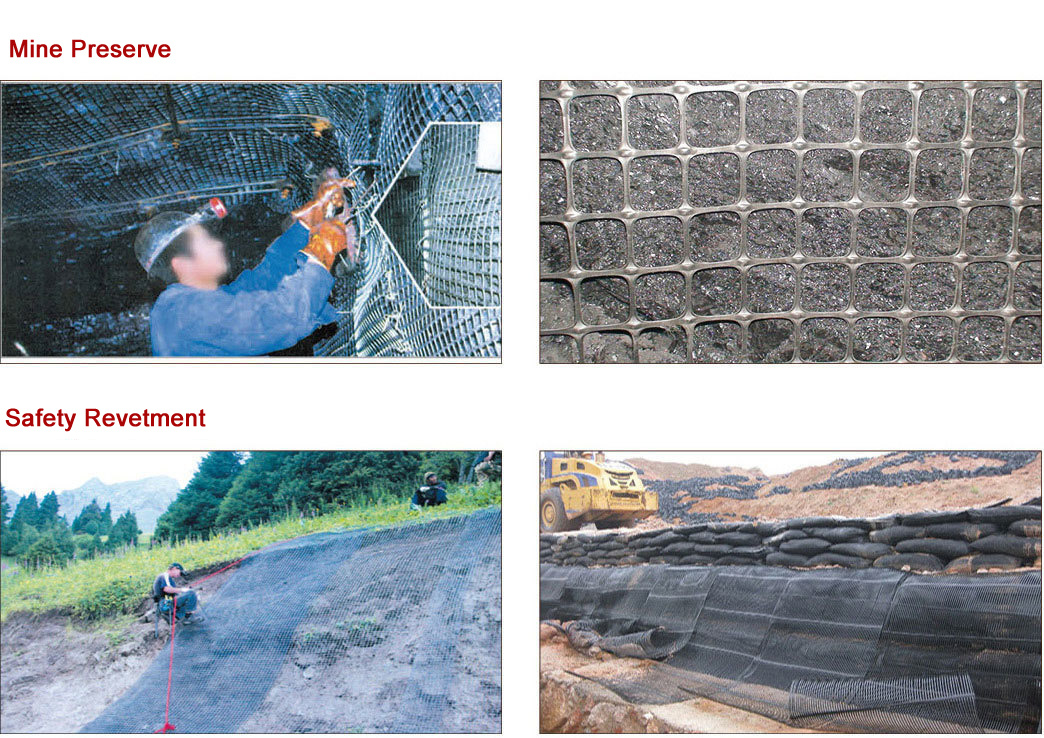

    During production, after flame retardant and antistatic treatment, it can also to produce double-direction stretch and concussion plastic net for mine, which can be used as underground coal mine armor for false top tunnels, and it is convenient for construction, also has the features of safety and beautiful appearance. It is the ideal replacement of traditional wire knotting net.

    Main Technical Specification
    Model   JG-TGGS4000 JG-TGGS6000
    Extruder   Ø150/33 Ø180/33
    Screw dia. mm Ø150 Ø180
    Width of die head mm 1450 2000
    Punching pressure KN 1100 3150
    Width of single-direction product mm 1200 2000
    Width of double-direction product mm 4000 6000
    Spec. of double-direction product KN/m 15-15,20-20,30-30,40-40,45-45,50-50
    Dimensions(L*W*H) (approx) m 98x12x4.8 110x15x5.2



    TONGJIA

    TONGJIA

    TONGJIA

    TONGJIA

    TONGJIA

    TONGJIA

    TONGJIA



    TONGJIA



    TONGJIA





    • geogrid machine
    • geonet machine
  • 型号

    JG-TGSG4000

    JG-TGSG5000

    JG-TGSG6000

    挤出机

    Φ150/33

    Φ160/33

    Φ180/33

    螺杆直径

    mm

    Φ150

    Φ160

    Φ180

    模头宽度

    mm

    1450

    1750

    2200

    冲孔压力

    KN

    1100

    1600

    1600

    单向制品幅宽

    mm

    1200

    1500

    2000

    单向制品规格

    KN/m

    25-150

    双向制品幅宽

    mm

    4000

    5000

    6000

    双向制品规格

    KN/m

    15-15,20-20,30-30,40-40,45-45

    外形尺寸(约)

    m

    90×12×4.8

    92×13×5

    110×15×5.2
