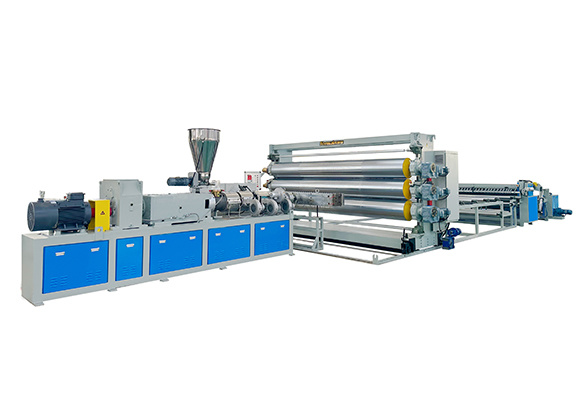

PVC Capillary Drainage Board Production Line

PVC Capillary Drainage Board Production Line

Capillary drainage board is a drainage material used in buildings, roads and other projects. It is made of high-density polyethylene or other kinds of plastics and has many tiny pores and channels. It is designed to provide drainage functions so that groundwater or rainwater can be effectively treated and removed. It can be used in basements, parking lots, roof gardens, sports venues and other places.

Commodity name： PVC Capillary Drainage Board Production Line

Subcategory

Products

Geonet Material Machine

Contact information

keyword

Product details

Model		TJ-PSM2000	TJ-PSM3000	TJ-PSM4000
Extruder		Ø65/132	Ø80/156	Ø80/156
Width of product	mm	2000	3000	4000
Installed capacity (approx)	KW	100	150	180
Dimensions(LWH) (approx)	M	18×3×3	20×4×4	25×5×5

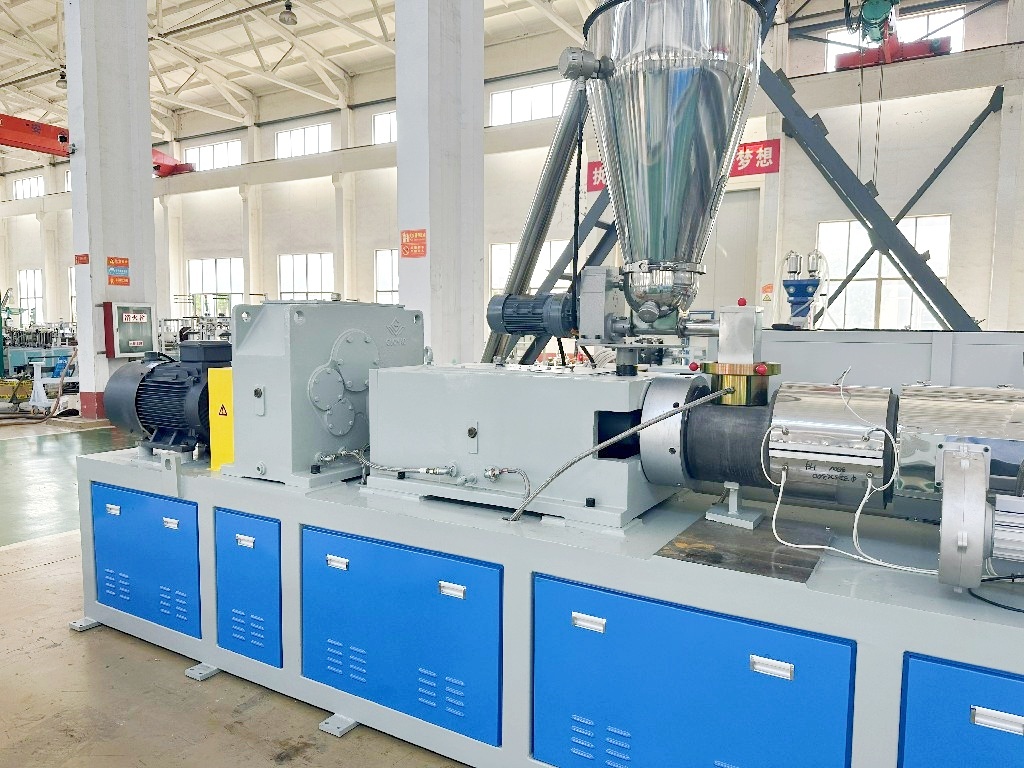

Conical twin-screw high efficiency extruder

◆This extruder can continuously produce PVC thermoplastics.
◆It has large output, low power consumption, precise temperature control and temperature protection function.

Hanger type flat plate extrusion template

◆ Stainless steel heating rods are used for zone heating to ensure smooth and uniform extrusion of materials.
◆ The die lip adopts adjustable grinding strips to meet the production of sheets of different widths.

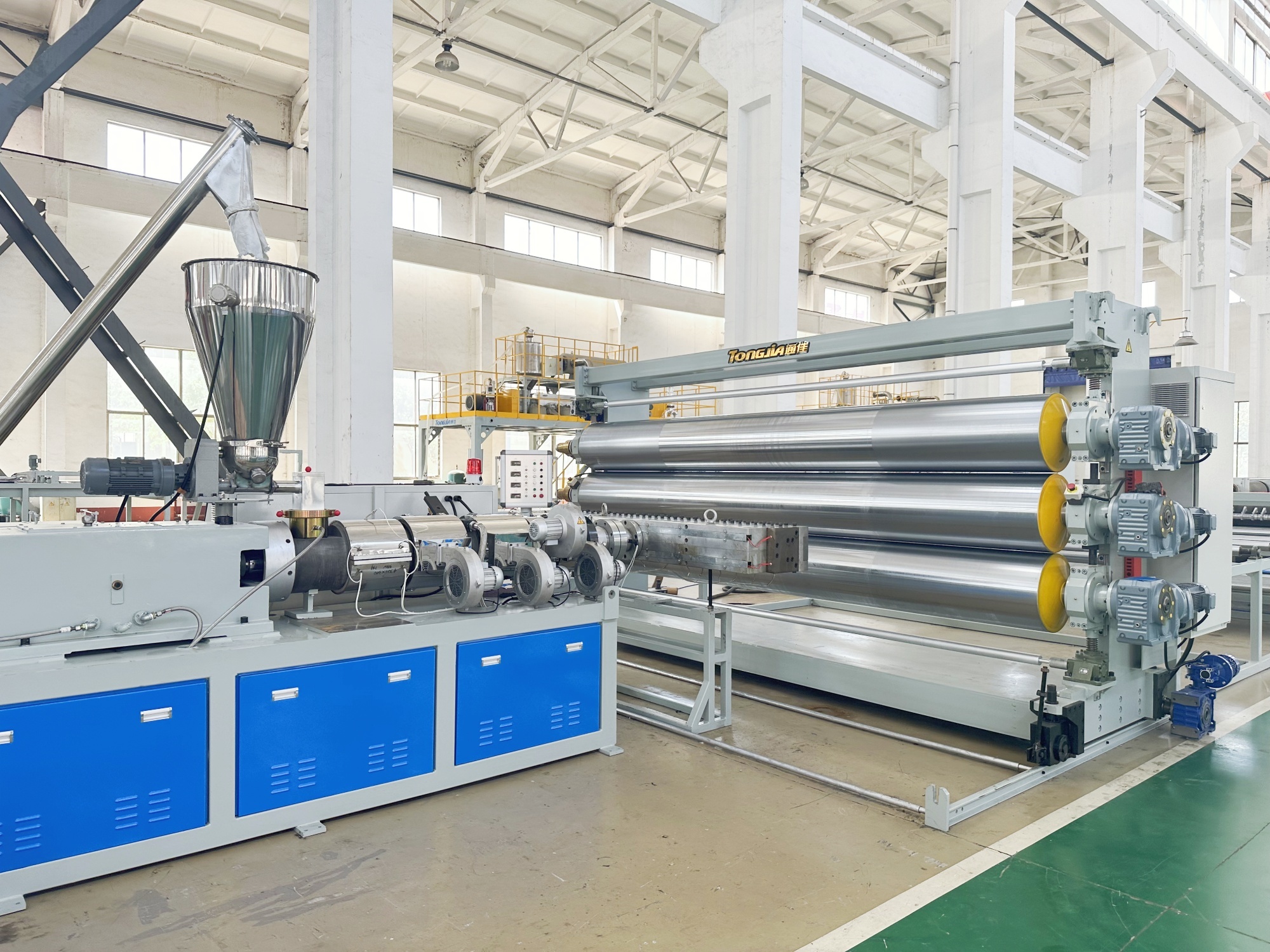

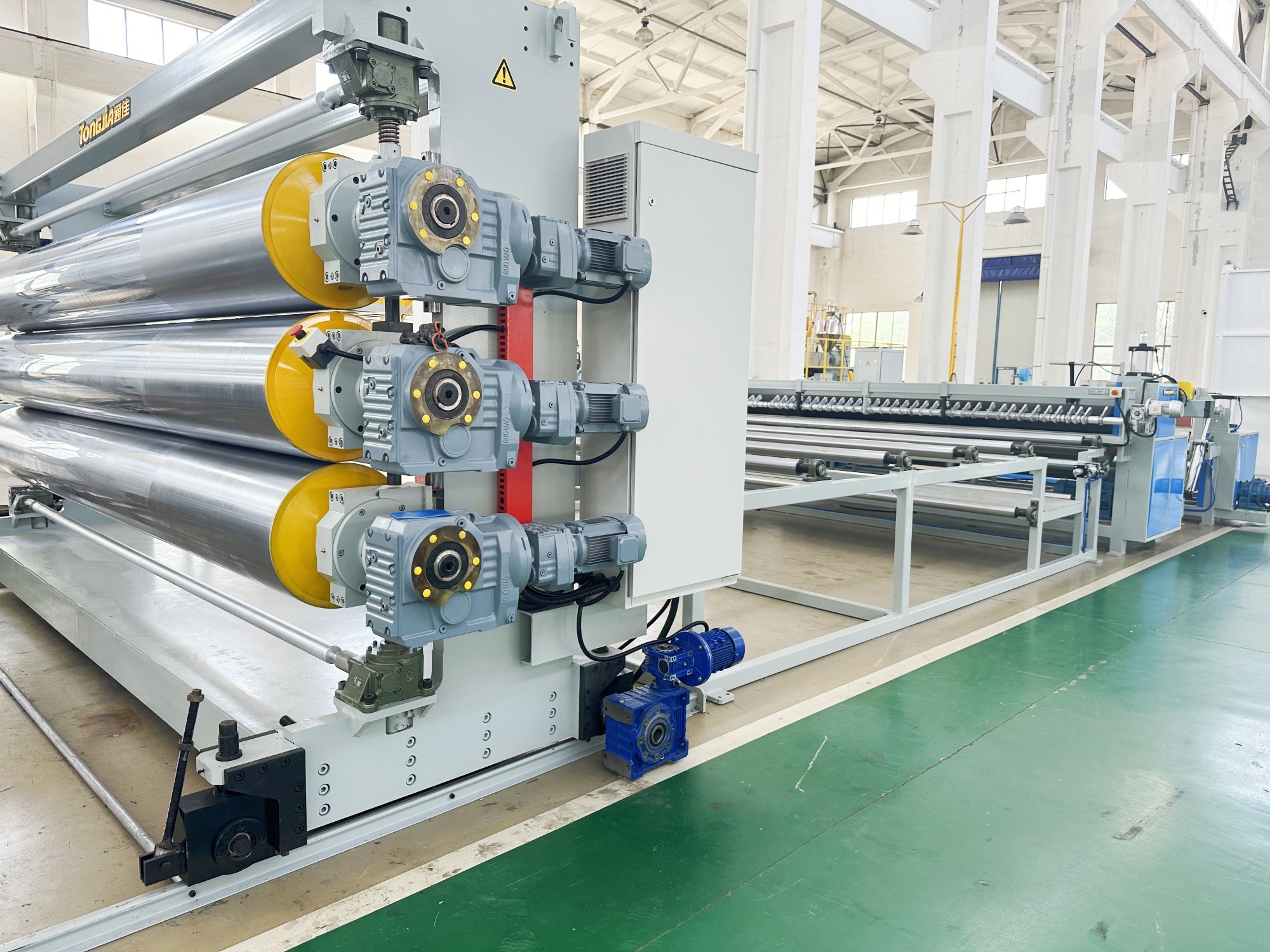

Large diameter three-roller calender

◆The three large-diameter mirror rollers are driven independently and can be adjusted synchronously.
◆Three sets of independent closed-circulation water cooling devices are used

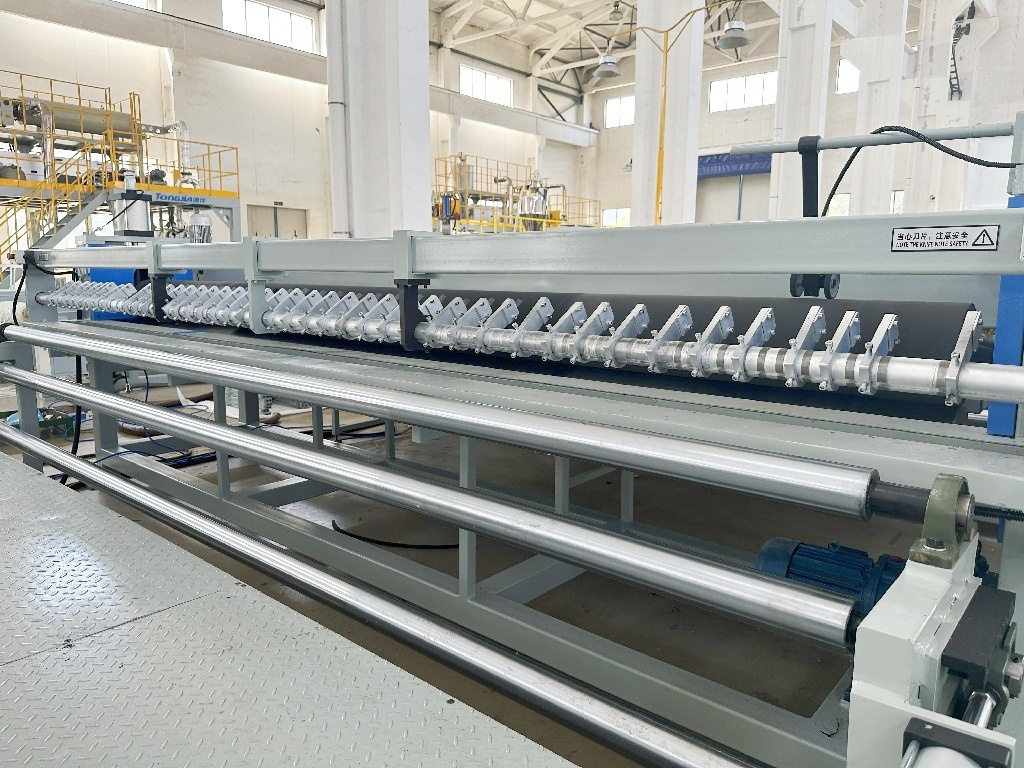

Online Slitting

◆Automatic cutting, improve work efficiency, save manpower
◆Cutting plates, online adjustable, no need for secondary cutting

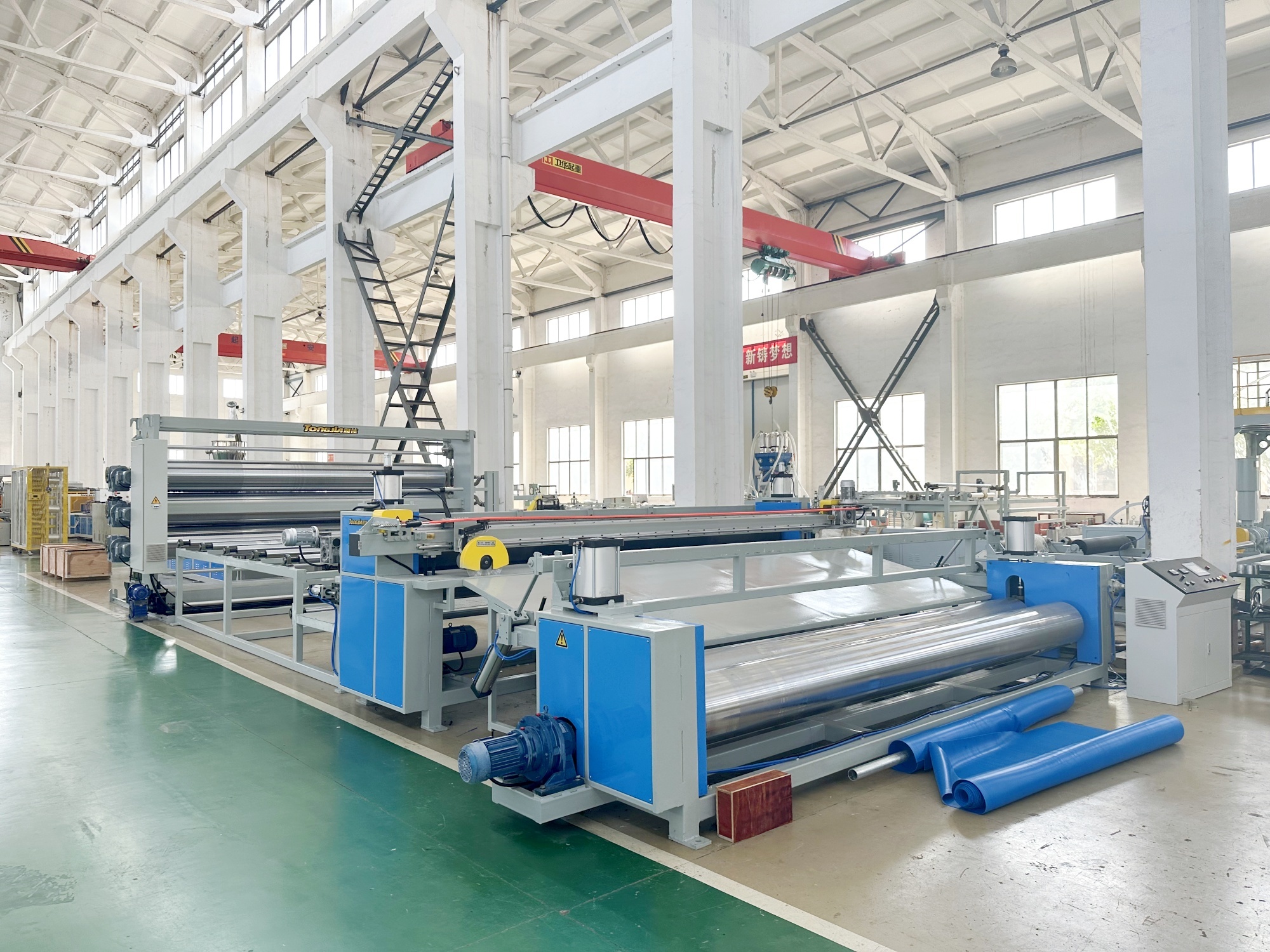

Backpack friction winding

◆Easy to control, the linear speed of the film roll is basically consistent with the surface winding roller
◆Simple structure, the product is not easily damaged
